DxU Microscopy Series
Urine Microscopy Analyzer
Streamline urinalysis workflow with standardized results and walkaway technology
The DxU Iris Microscopy Series automated urine microscopy analyzer includes the DxU 840m Iris, with a throughput of 70 samples per hour or the DxU 850m Iris, with a throughput of 101 samples per hour. The instruments deliver faster turnaround times and accurately standardizes results by reducing manual intervention.
This product may not be available in your country or region at this time. Please contact your Beckman Coulter sales representative or distributor for more information.
-
All
The DxU Microscopy Series is available as either a stand-alone urine microscopy instrument or it can connect to the AUTION MAX™ AX-4030 urine chemistry instrument to form the fully automated DxU Iris Workcell urinalysis system. Using proprietary Digital Flow Morphology technology with Auto Particle Recognition (APR) Software, the DxU Microscopy Series helps to isolate, identify and characterize digital images of particles on the screen to virtually eliminate the need for manual microscopy.
Reduce Manual Reviews
The DxU Microscopy Series streamlines urinalysis workflow with significantly lower manual microscopic review rate of 4%.1 This is achieved using Proprietary Digital Flow Morphology technology with APR software to capture digital images of particles in the urine or in body fluids. Leveraging this technology reduces total sample processing time up to 78% compared to manual microscopy.2
Confidence in Results
APR Software evaluates the size, shape, contrast and texture of the urine particles and evaluates each digital image to identify and classify the urine particles into one of 12 primary categories. The operator has the option to further subclassify particles into 27 additional categories. This offers easy identification of the urine sediment and quick verification of particle presence reduces the need for microscopy to identify and confirm presence of a category flag or scatterplot. The primary particle categories include:
Auto-release Results
Edit-Free Release technology allows the laboratory to auto-verify true positive urines and true negative urines based on release settings they set up. This feature converts the analyzer into a walkaway unit.
Increase Uptime and Improve Productivity
iWARE Integrated Urinalysis Software solution, standard on the urinalysis analyzer, combines onboard validation and result verification into a single step without the need for middleware. The software helps laboratories become more efficient by reducing time-consuming steps.
Optimize Rinse Routine
The DxU Iris introduces the iQclear, an enhanced cleaning aspiration module that helps with additional cleaning of the sample probe.
Comparison of the DxU Microscopy Series Instruments

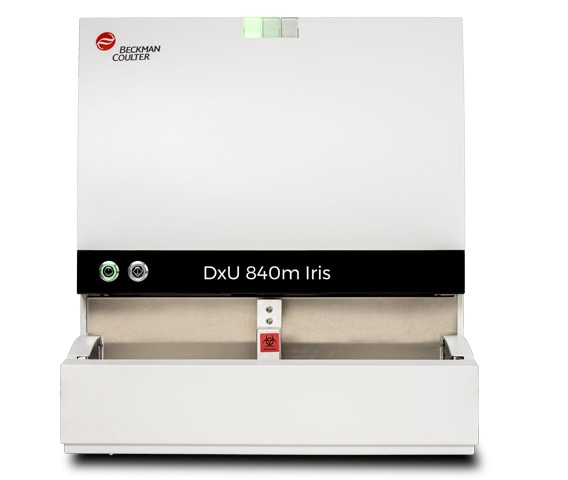

DxU 840m Iris
- 70 samples per hour

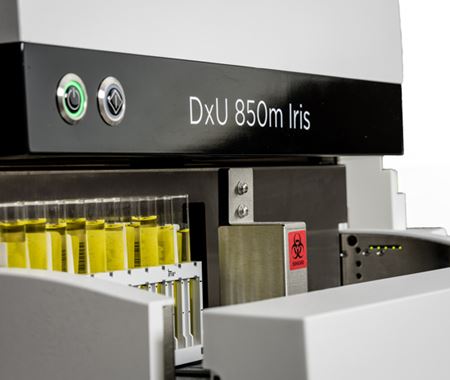

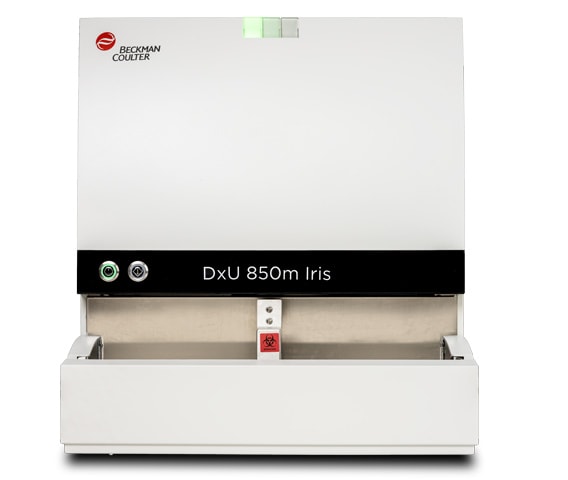

DxU 850m Iris
- 101 samples per hour
| MICROSCOPY | |
Menu/Test parameters |
Urine particles: Additional categories for subclassification:
Body fluids: |
Measurement technology |
Digital Flow Morphology using Auto-Particle Recognition Software |
Sample throughput |
Up to 101 samples per hour |
Sample identification and capacity |
|
Specimen volume |
|
Workstation |
|
Data storage |
Onboard storage of up to 10,000 patient results |
Communication interface |
Bidirectional with host query |
Operating environment |
|
Electrical power requirement |
|
BTU |
1,200 |
Dimensions and Weight |
Depth |
Width |
Height |
Weight |
| Microscopy module | 25.4" (64.5 cm) | 20.9" (53 cm) | 23" (54.4 cm) | 100.0 lbs (46.0 kg) |
| CPU | 10.8" (27.4 cm) | 5.5 in (14.0 cm) | 12.7" (32.3 cm) | 28.0 lbs (13.0 kg) |
| 21.5" Monitor with base | 8.6" (21.8 cm) | 20.4 in (517.4 mm) | 13.8" (35 cm) | 23.8 lbs (10.8 kg) |
| Load/Unload stations | 20.5" (52 cm) | 9.25" (23.5 cm) | 5.7" (14.5 cm) | 11 lbs (5 kg) |
Select Tips & Tools to access helpful documents and information for your instrument.
Step 1: To access content such as job aids, checklists, In-Lab Training Manuals, etc., select the Tips & Tools link in the top left navigation.
Step 2: Select the product name.
Step 3: You will be directed to the product page and access to the product-specific content.
Click here to access Tips & Tools
Article Urinary casts: Indicators of Underlying Clinical Pathology
How can urinalysis aid in overall patient health? In this MLO continuing education article by Dr. Paul Morris read about the renal system and chronic kidney disease—and how automated urinalysis can help identify different types of urinary casts important to disease.
Read article
Webinar Keeping It Renal
Learn indications of urine sediment biomarkers and how particle optimization identification on DxU Iris impacts diagnoses and patient outcomes.
Watch now

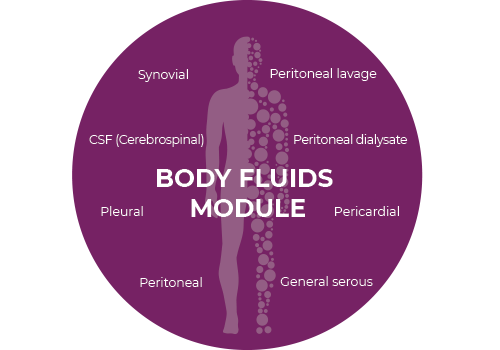

Automate Body Fluids Analysis
The DxU Micrscopy Series provides a standardized, fully automated method for the analyses of RBC count and nucleated cell count in cerebrospinal, synovial and serous fluids. Digital Flow Morphology technology isolates particles in body fluids to provide immediate, accurate and reproducible results that can be verified on the screen.
Learn more

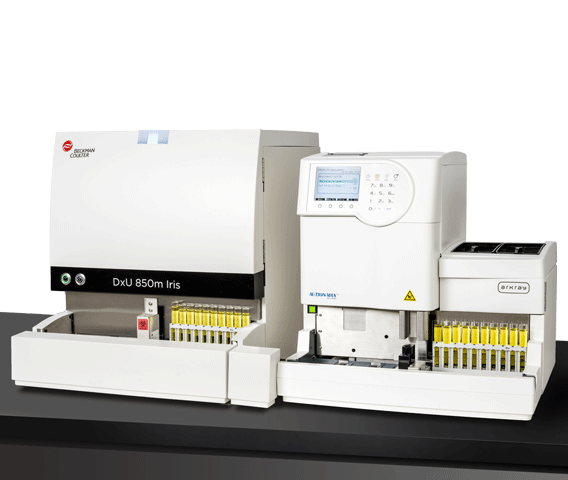

Urinalysis Workcell
DxU Iris Workcell fully automated solution takes the interruptions out of urinalysis workflow.
Explore

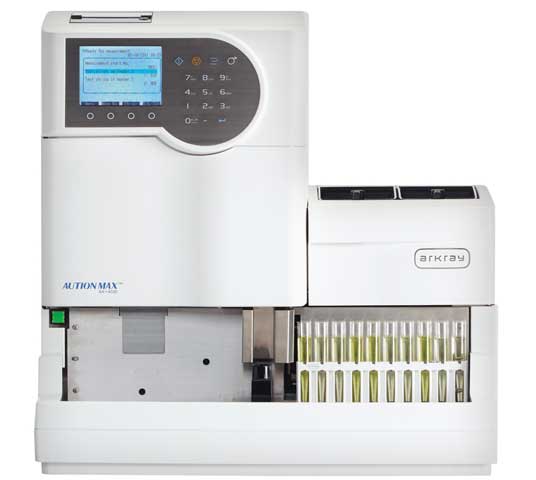

Urine Chemistry
The ARKRAY AUTION MAX AX-4030 generates accurate and reliable urine chemistry results without interruption.
Explore

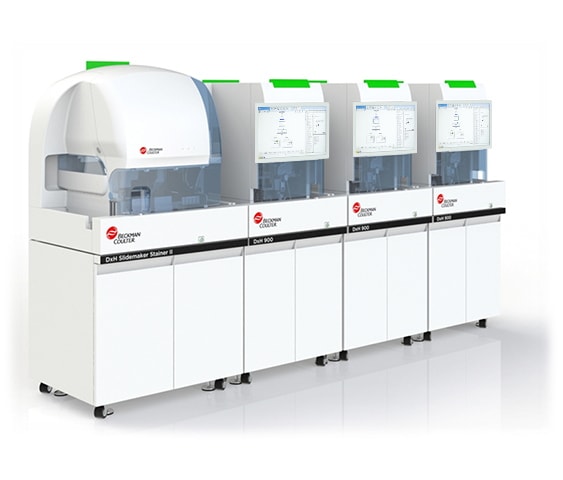

Hematology
